Molex

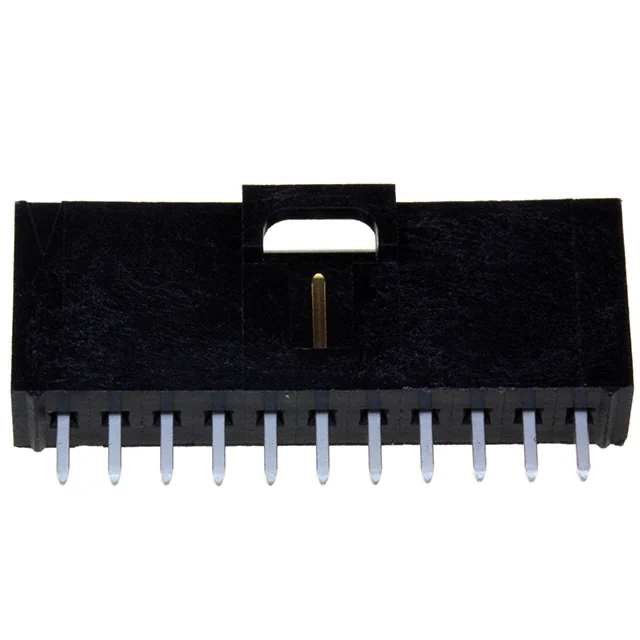

CONN HEADER VERT 11POS 2.54MM
23-0705430115
CONN HEADER VERT 11POS 2.54MM
5,055 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Insulation Height
0.465" (11.80mm)
Shrouding
Shrouded - 4 Wall
Base Product Number
070543
Contact Finish - Post
Tin
Number of Rows
1
Row Spacing - Mating
-
Style
Board to Cable/Wire
Mounting Type
Through Hole
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
-
Overall Contact Length
0.470" (11.94mm)
Package
Tube
Product Status
Active
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Voltage Rating
250V
Termination
Solder
Fastening Type
Latch Holder
Contact Length - Mating
0.240" (6.10mm)
Contact Finish - Mating
Gold
Contact Material
Phosphor Bronze
Series
SL 70543
Pitch - Mating
0.100" (2.54mm)
Contact Shape
Square
Connector Type
Header
Number of Positions
11
Insulation Material
Polyester, Glass Filled
Insulation Color
Black
Contact Finish Thickness - Post
74.8µin (1.90µm)
Mfr
Molex
Number of Positions Loaded
All
Features
-
Ingress Protection
-
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
