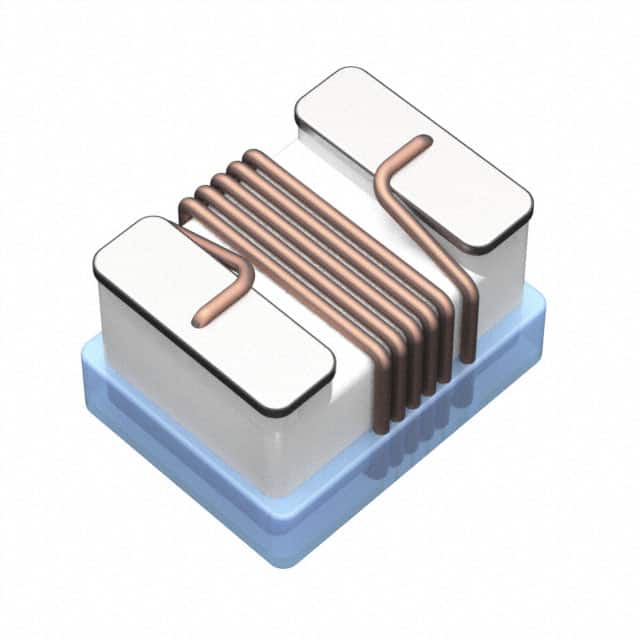

0805CS-822EKFS
0805CS-822EKFS
Favorite Products
Request Free Samples
0805CS-822EKFS
0805CS-822EKFS
FIXED IND 8.2UH 180MA 3.3OHM SMD
2035-0805CS-822EKFSTR
F0805CS.pdf
FIXED IND 8.2UH 180MA 3.3OHM SMD
8,083 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Height - Seated (Max)
0.057" (1.45mm)
Features
-
Inductance
8.2 µH
Current - Saturation (Isat)
-
Q @ Freq
15 @ 7.96MHz
Ratings
-
Package / Case
0805 (2012 Metric)
Size / Dimension
0.090" L x 0.067" W (2.29mm x 1.71mm)
Tolerance
±10%
Mounting Type
Surface Mount
Base Product Number
0805CS
DC Resistance (DCR)
3.3Ohm
Inductance Frequency - Test
7.96 MHz
Frequency - Self Resonant
33MHz
Supplier Device Package
0805
Package
Tape & Reel (TR)^^Cut Tape (CT)
Current Rating (Amps)
180 mA
Operating Temperature
-40°C ~ 85°C
Mfr
Delta Electronics/Components
Series
0805CS
Shielding
Unshielded
Product Status
Active
Type
Drum Core, Wirewound
Material - Core
Ferrite
