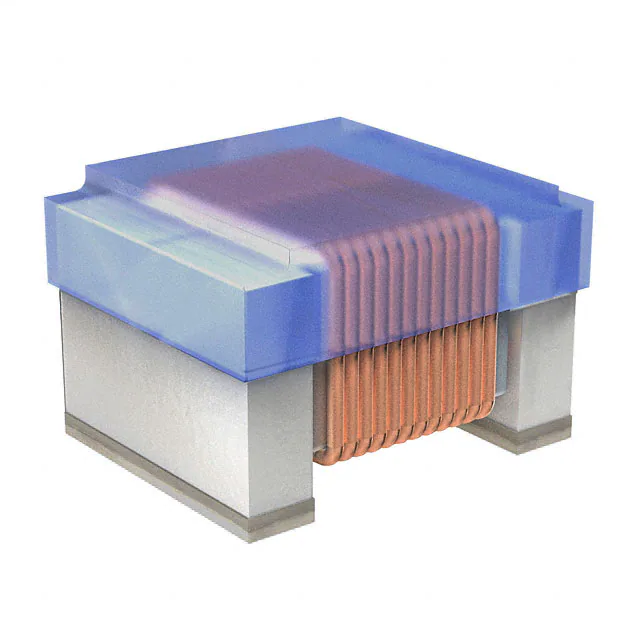

744765056GA
744765056GA
Favorite Products
Request Free Samples
744765056GA
744765056GA
Würth Elektronik
FIXED IND 5.6NH 760MA 83MOHM SMD
732-744765056GATR
FIXED IND 5.6NH 760MA 83MOHM SMD
8,093 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
DC Resistance (DCR)
83mOhm Max
Series
WE-KI
Size / Dimension
0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)
0.024" (0.60mm)
Shielding
Unshielded
Ratings
-
Package / Case
0402 (1005 Metric)
Q @ Freq
23 @ 250MHz
Inductance Frequency - Test
250 MHz
Supplier Device Package
0402
Product Status
Active
Current Rating (Amps)
760 mA
Tolerance
±0.2nH
Package
Tape & Reel (TR)^^Cut Tape (CT)
Material - Core
Ceramic
Current - Saturation (Isat)
-
Frequency - Self Resonant
5.8GHz
Features
-
Mfr
Würth Elektronik
Inductance
5.6 nH
Mounting Type
Surface Mount
Type
Drum Core, Wirewound
Operating Temperature
-40°C ~ 125°C
