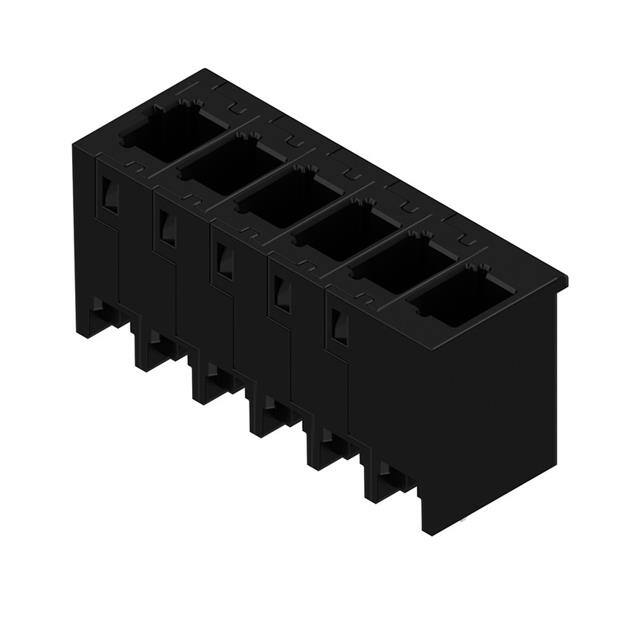

8000072438
8000072438
Weidmüller
PCB PLUG-IN CONNECTOR (BOARD CON
281-8000072438
8000072438.pdf
PCB PLUG-IN CONNECTOR (BOARD CON
8,015 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Pitch
0.197" (5.00mm)
Contact Material
Copper Alloy
Screw Size
-
Mounting Type
Through Hole
Series
Omnimate 4.0 MHS
Current - UL
14 A
Voltage - UL
300 V
Contact Mating Finish
Tin
Torque - Screw
-
Package
Tube
Positions Per Level
6
Wire Gauge or Range - AWG
-
Operating Temperature
-50°C ~ 100°C
Type
Header, Male Pins, Shrouded (4 Side)
Header Orientation
Vertical
Wire Gauge or Range - mm²
-
Color
Black
Housing Material
Polyamide (PA9T), Nylon 9T
Number of Levels
1
Plug Wire Entry
-
Termination Style
Solder
Voltage - IEC
400 V
Ingress Protection
IP20
Insulation Height
0.551" (14.00mm)
Wire Strip Length
-
Contact Tail Length
0.126" (3.20mm)
Number of Positions
6
Product Status
Active
Current - IEC
25.3A
Mfr
Weidmüller
Features
-
Material Flammability Rating
UL94 V-0
