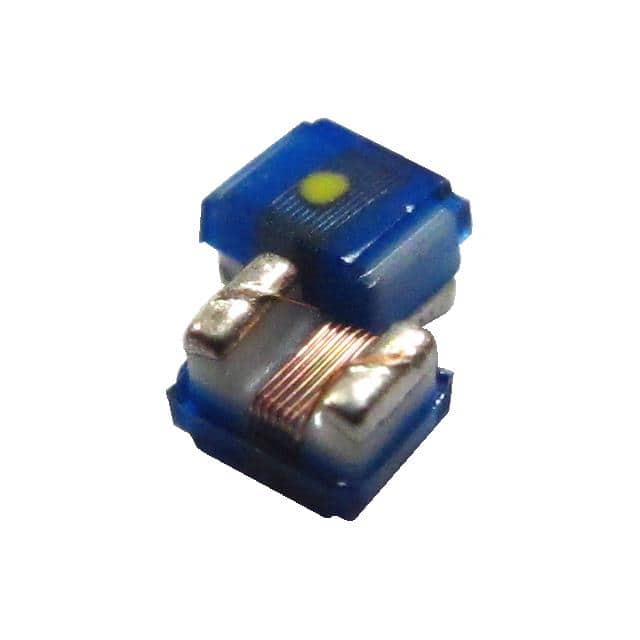

AWCS0012070720NH00
AWCS0012070720NH00
Favorite Products
Request Free Samples
AWCS0012070720NH00
AWCS0012070720NH00
Chilisin Electronics
INDUCTOR RF
553-AWCS0012070720NH00TR
AWCS_Series.pdf
INDUCTOR RF
30,020 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Size / Dimension
0.047" L x 0.025" W (1.19mm x 0.64mm)
Features
-
Type
Drum Core, Wirewound
Q @ Freq
25 @ 250MHz
Product Status
Active
Shielding
Unshielded
Inductance Frequency - Test
250 MHz
Supplier Device Package
0402
Mfr
Chilisin Electronics
Package
Tape & Reel (TR)
Tolerance
±3%
DC Resistance (DCR)
250mOhm Max
Series
AWCS
Frequency - Self Resonant
3GHz
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Current Rating (Amps)
420 mA
Current - Saturation (Isat)
-
Ratings
AEC-Q200
Height - Seated (Max)
0.026" (0.66mm)
Material - Core
Ceramic
Inductance
20 nH
Operating Temperature
-40°C ~ 125°C
