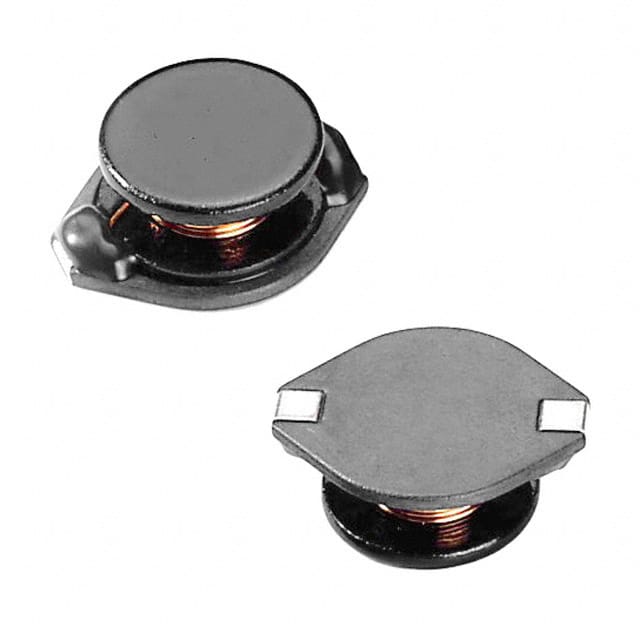

SC5022F-6R8
SC5022F-6R8
Favorite Products
Request Free Samples
SC5022F-6R8
SC5022F-6R8
Signal Transformer
FIXED IND 6.8UH 5.6A 25 MOHM SMD
SC5022F-6R8
SC5022F-101.pdf
FIXED IND 6.8UH 5.6A 25 MOHM SMD
5,092 In Stock
Fill out the form and we will contact you shortly.
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Operating Temperature
-40°C ~ 125°C
Inductance
6.8 µH
DC Resistance (DCR)
25mOhm Max
Shielding
Unshielded
Mounting Type
Surface Mount
Product Status
Active
Current Rating (Amps)
5.6 A
Mfr
Signal Transformer
Inductance Frequency - Test
100 kHz
Supplier Device Package
-
Tolerance
±20%
Current - Saturation (Isat)
11.5A
Package
Tape & Reel (TR)
Frequency - Self Resonant
-
Ratings
-
Series
SC5022F
Material - Core
-
Height - Seated (Max)
0.280" (7.11mm)
Type
Wirewound
Package / Case
Nonstandard
Size / Dimension
0.750" L x 0.620" W (19.04mm x 15.74mm)
Q @ Freq
-
